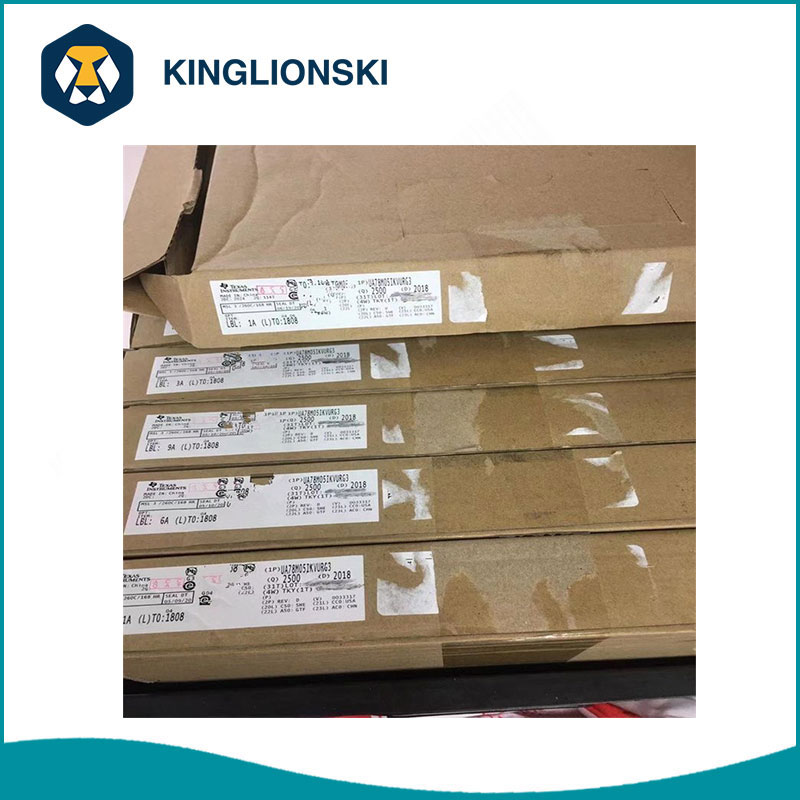

TCAN1051DRQ1 Texas Instrument Electronic Components

Kinglionski is the agent and distributor of TCAN1051DRQ1 Texas Instrument Electronic Components, focusing on the foreign trade of electronic components for 12 years. It only makes new and original packaging, with reasonable price and high quality, and serves most of the European and American markets.

Send Inquiry

Product Description

TCAN1051DRQ1：CAN Interface integrated circuit Automotive fault-protected CAN transceiver with flexible data-rate and sleep mode 8-SOIC -55 to 125.

This CAN transceiver family meets the ISO11898-2 (2016) High Speed CAN (Controller Area Network) physical layer standard. All devices are designed for use in CAN FD networks up to 2 Mbps (megabits per second). Devices with part numbers that include the "G" suffix are designed for data rates up to 5 Mbps, and versions with the "V" have a secondary power supply input for I/O level shifting the input pin thresholds and RXD output level.

TCAN1051DRQ1 Texas Instrument Electronic Components Features

Type	Main product features
TCAN1051DRQ1	AEC Q100: Qualified for automotive applications
	Meets the ISO 11898-2:2016 and ISO 11898-5:2007 physical layer standards
	EMC performance: supports SAE J2962-2 and IEC 62228-3 (up to 500 kbps) without common mode choke
	I/O Voltage range supports 3.3 V and 5 V MCUs
