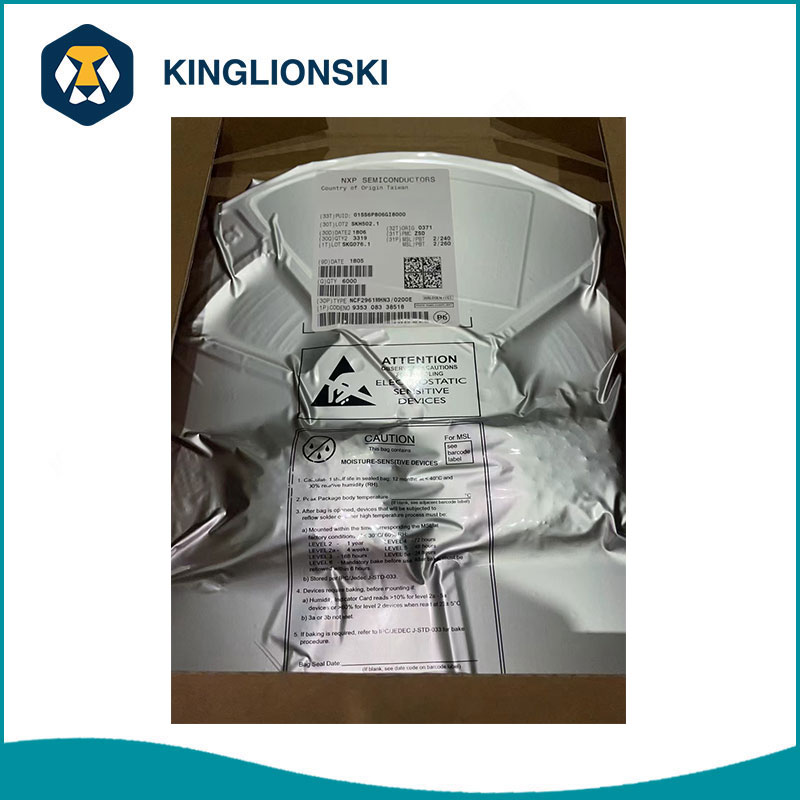

S9S12G240F0MLH NXP Electronic Components

Kinglionski is the agent and distributor NXP electronic components of S9S12G240F0MLH NXP Electronic Components, focusing on the foreign trade of electronic components for 12 years. It only makes new and original packaging, with reasonable price and high quality, and serves most of the European and American markets.

Send Inquiry

Product Description

S9S12G240F0MLH belongs to 16-bit MCU of NXP electronic components.Ports P, J and AD offer pin interrupt capability. The related interrupt enable (PIE) as well as the sensitivity to rising or falling edges (PPS) can be individually configured on per-pin basis. All bits/pins in a port share the same interrupt vector. Interrupts can be used with the pins configured as inputs or outputs.

If more than one output signal is attempted to be enabled on a specific pin, a priority scheme determines the signal taking effect.

General rules:

-The peripheral with the highest amount of pins has priority on the related pins when it is enabled.

-If a peripheral can selectively disable a function, the freed up pin is used with the next enabled peripheral signal.

-The general-purpose output function takes control if no peripheral function is enabled.

S9S12G240F0MLH NXP Electronic Components Features

Type	Main product features
S9S12G240F0MLH	Control register for free-running clock outputs
	Data registers and data direction registers for ports A, B, C, D, E, T, S, M, P, J and AD when used as general-purpose I/O
	Control registers to enable/disable pull devices and select pullups/pulldowns on ports T, S, M, P, J and AD on per-pin basis
	Single control register to enable/disable pull devices on ports A, B, C, D and E, on per-port basis and on BKGD pin
